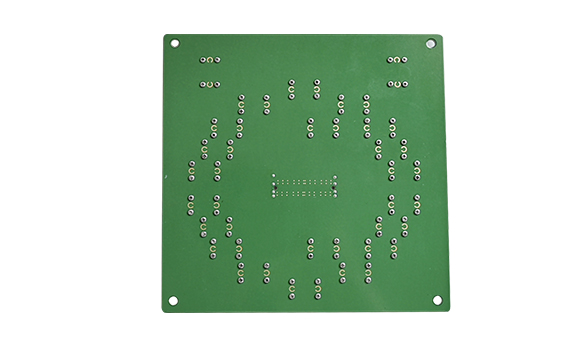

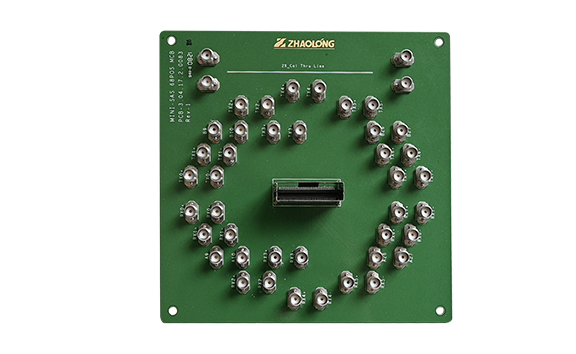

ITEM

Description

Connector

MCIO connector as defined in SFF-8087

Connector Contact

68-Pin Connector

Connector Configuration

Vertical

Connector Termination Style

Surface Mount

No. of HSIO Routed

10 TX and 10 RX

RF Co-axial Launch Connector

2.92mm Connector -50 Ohm

HSIO Routing

100 Ohm ±5% Differential Stripline

Board Stack-Up

6 Layers (1.50mm thickness)

De-embedding structure

2X THRU Line

Reference plane for 2X THRU

De-embedding structure

40mils from void

Power source to DUT

N/A
