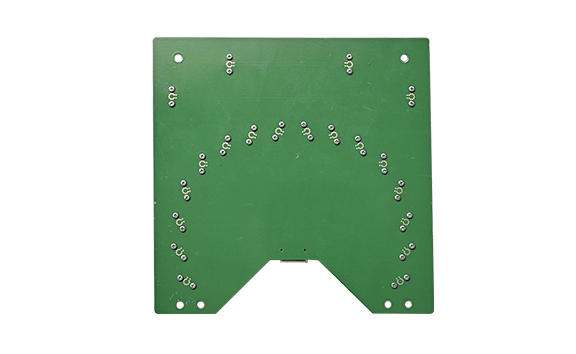

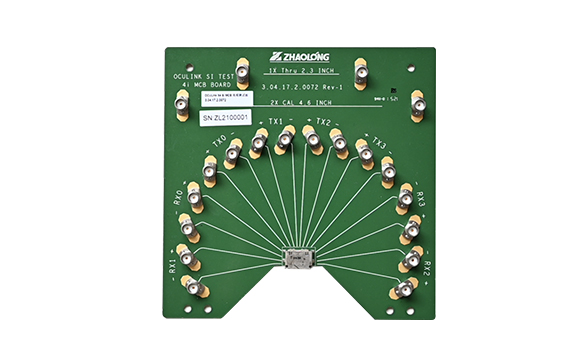

ITEM

Description

Connector

Oculink connector as defined in SFF-8611

Connector Contact

42-Pin Connector

Connector Configuration

Right Angel

Connector Termination Style

Surface Mount

No. of HSIO Routed

4 TX and 4 RX

RF Co-axial Launch Connector

2.92mm Connector -50 Ohm

HSIO Routing

50 Ohm ±5% Single-Ended Stripline

Board Stack-Up

4 Layers (1.28mm thickness)

De-embedding structure

2X THRU Line

Reference plane for 2X THRU

De-embedding structure

40mils from void

Power source to DUT

N/A
