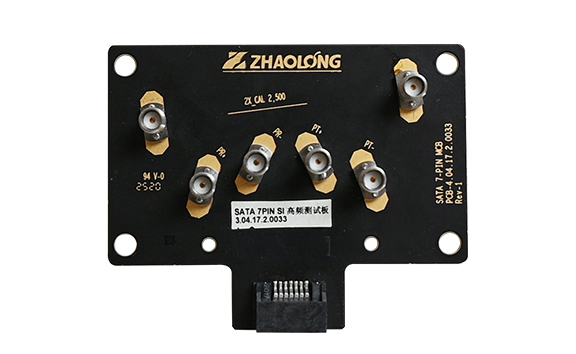

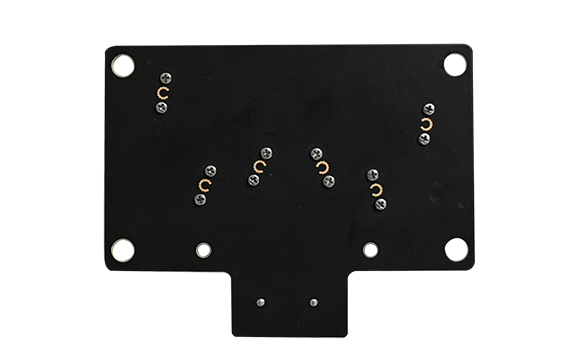

ITEM

Description

Connector

SATA 7Pin connector

Connector Contact

7-Pin Connector

Connector Configuration

Right Angel

Connector Termination Style

Surface Mount

No. of HSIO Routed

1 TX and 1 RX

RF Co-axial Launch Connector

2.92mm Connector -50 Ohm

HSIO Routing

50 Ohm ±5% Single-Ended Stripline

Board Stack-Up

 4 Layers (1.52mm thickness)

De-embedding structure

2X THRU Line

Reference plane for 2X THRU

De-embedding structure

40mils from void

Power source to DUT

N/A
