Compliant with SFF-8613 / SFF-8614 Standard
Compliant with SFF-8643 / SFF-8644 Standard
Compliant with SFF-8673 / SFF-8674 Standard
Compliant with SAS 3.0 / SAS 4.0 Standard
Data Rate: Support Maximum data rate to SAS 24Gbps Per Channel
Low Power Consumption
Management Interface follows SFF-8636 Standard and can be customized
Excellent SI Performance
Custom Colors For Pull Tab
Market and Application
SAS/SATA/PCIe HBA Interface
Data Center and Enterprise Storage Systems
Direct Attached Storage (DAS)
Telecommunication Equipment
SATA 3.2 6.0Gbps
SAS 4.0 (24Gbps) . SAS 3.0 (12GBps)
PCIe 4.0 and 3.0 (16.0GT/s and 8GT/s)
Mechanical Performance

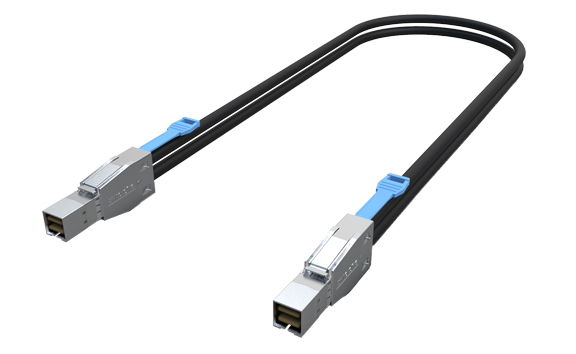

Mini SAS HD 4X Module
Module Insertion: 62N Maximum
Module Extraction: 30N Maximum
Latch Retention: 75N Maximum
Rated Durability Cycles: 250 Cycles Minimum
Electrical Performance
Mini SAS HD 4X Module
Supply Voltage 3.3 VDC +/- 5%
Supply Current:0.03A Max at 3.135V
Power Consumption (DAC) : 0.125 Watt Max
Voltage: 30VAC per contact
Current: 0.5A/Signal Contact
Signal Integrity
SATA (Serial Advanced Technology Attachment ) 6Gbps
SAS (Serial Attached SCSI) 6G/ 12G /24 Gbps
External PCIe 4X/ 8X Cable ( 8GT/s and 16GT/s)
Product Environmental Compliance
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Products: Optional
