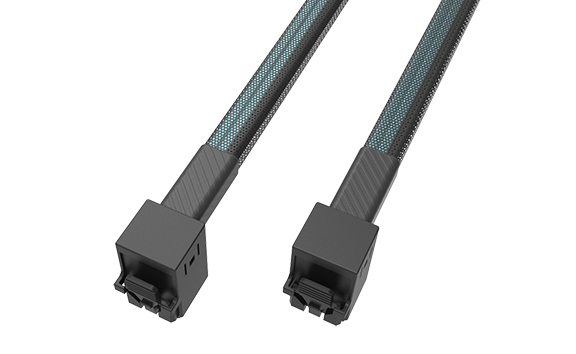

Int.Mini SAS HD 4i R/A

Product Description: Mini SAS HD 4i/36pos Right Angel Plug
Series: Internal Mini SAS HD
Cable Length: 1.0 Meter
Signal Wire Size: 30AWG
Lock to mating part: With Latch
Plating: Au 30u" min on contact area
Connector Color:Black
Environmental Compliance: RoHS

Flammability: PCB UL94V-0, thermoplastic resin UL94V-0


产品描述:Mini SAS HD 4i/36pos Right Angel Plug
系列:内部MiniSAS HD
线材长度:1m
线径:30AWG
解锁装置:弹片
镀层:接触区域镀金层大于30u"
连接器颜色:黑色
环保要求:RoHS
阻燃等级:UL94V-0

分享到:
Applcation / Market
1. Data center & Networking Equipment
2. Servers/Storage Devices
3.SAS/SATA/PCIe HBA Interfaces
4. Switches/Routers
5. Wireless Base Stations and Radios

Features and Benefits
1. Compliance with SFF-8613/ 8643/8673 standard
2. Small size design: pitch 0.8mm
3. 4i(36pos)and 8i(72pos) connector type, and support straight, right angle and side exit
4. Supports 100 & 85 ohm impedance applications
5. 30-34AWG are available for both discrete and ribbon cable

Mechanical Performance
1. Mating force:  150N maximum
2. Unmating force: 50N maximum
3. Rated durability cycles: 250 cycles minimum

Electrical Performance
1. Voltage: 30VAC per contact
2. Current: 1.0A per contact
3. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
4. Insulation Resistance: 10 MΩ minimum between adjacent pins

Signal Integrity
1. PCIe 4.0 16.0 GT/S
2. SAS 4.0 24 Gbps

Product Environmental Compliance
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Status: Not Reviewed
