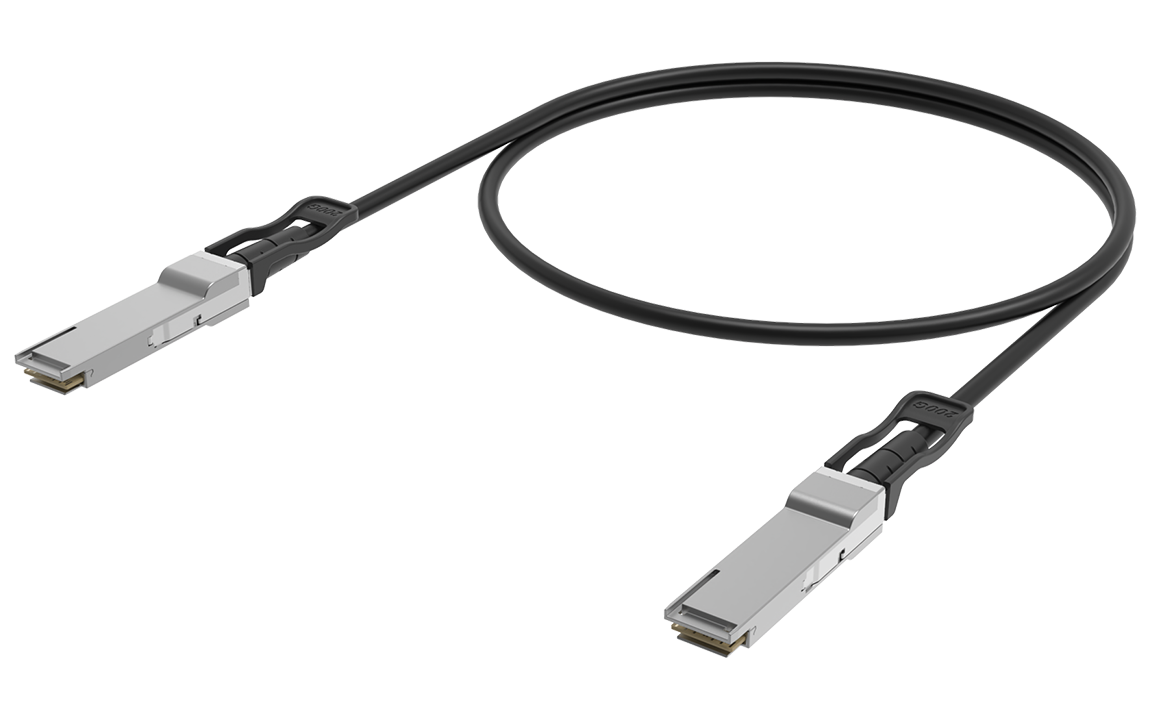

QSFP56 to QSFP56 200 Gbps ACC (Active Redriver)

Product Description: QSFP56 to QSFP56 200 Gbps Active Redriver Copper Cable
Series: 200-GBPS QSFP56
Data Rate: 200 Gigabit Ethernet (200 GbE)
Bulk Cable: Zhaolong LONGSPEED® Twin-Ax  HSC Series
Cable Construction: 8Pair Round Cable
Signal Wire Size: 26-30 AWG
Cable Length : 1.0-5M
LSZH Products Available
Temperature Range: 0-70℃

Features and Benefits
Compliant with QSFP-DD/QSFP56 MSA Standard
Compliant with IEEE 802.3cd (200GBASE-CR4) Standard
Compliant with IEEE 802.3bj (100GBASE-CR4) Standard
Compliant with IEEE 802.3by (25 Ethernet) Standard
Data Rate: 28G NRZ & 56G PAM-4 Per Channel Total Bandwidth 200 Gbps (4 Lane 56G PAM-4)
Low Power Consumption
Management Interface follows SFF-8636 Standard and can be customized
Excellent SI Performance
Custom Colors For Pull Tab

Market and Application
High-Performance Computing (HPC)
Network Interface Cards (NIC's)
Data Center and Enterprise Storage Systems
Telecommunication Equipment
200Gbps Ethernet
InfiniBand™  4X EDR & HDR
Fibre Channel

Mechanical Performance
QSFP56 Module
Module Insertion:  60N Maximum
Module Extraction: 30N Maximum
Latch Retention: 90N Minimum
Rated Durability Cycles: 50 Cycles Minimum

Electrical Performance
QSFP56 Module
Supply Voltage 3.3 VDC +/- 5%
Supply Current:0.03A Max at 3.135V
Power Consumption (Redriver ACC) : 1.0 Watt Max
Voltage: 30VAC per contact
Current: 0.5A/Signal Contact

Signal Integrity
 IEEE 802.3cd (200GBASE-CR4)
 IEEE 802.3bj (100GBASE-CR4)
 IEEE 802.3by (25 Ethernet)
 InfiniBand™ 4X EDR(100G) / HDR(200G)

Product Environmental Compliance
1. RoHS2.0: Compliant
2. China RoHS: Yes
4. Low-Halogen Products: Optional
