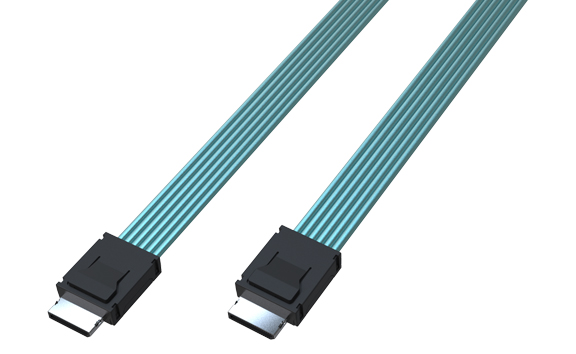

OcuLink 4X Active Latch Straight

Product Description: OcuLink 4X Cable Assembly , Active Latch type -STR
Series: OcuLink Series
Cable Length: 1.0 Meter
Signal Wire Size: 30~34 AWG
Lock to mating part: With Latch
Plating: Au 30u" min on contact area
Pull tab : N/A
Connector Color:Black
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0

分享到:
Applcation / Market
1. Data center & Networking Equipment
2. Servers/Storage Devices
3.SAS/SATA/PCIe HBA Interfaces
4. Switches/Routers
5. Wireless Base Stations and Radios

Features and Benefits
1. Complince with SFF-8611 standard
2. Small size design: pitch 0.6mm
3. 4x 41Pin connector type, and support straight, right angle and side exit
4. 85 ohm impedance design for PCIe application
5. 30-34AWG are available for both discrete and ribbon cable

Mechanical Performance
1. Mating Force : (4x)~25N Max
2.Un-Mating Force* :  (4x)~25N Max
3. Rated durability cycles: 250 cycles MIN.
*Un-mating force must be less than mating force.

Electrical Performance
1. Voltage: 30VAC per contact
2. Current: 0.5A per contact
3. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
4. Insulation Resistance: 10 MΩ minimum between adjacent pins

Signal Integrity
1. PCIe Gen 3.0 & 4.0 Compliant

Product Environmental Compliance
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Status: Not Reviewed
