Features and Benefits
Compliant DSFP Standard
Compliant NGSFP MSA
Management Interface Follow CMIS
Compliant with SFF 8402 Standard
Compliant with IEEE 802.3cd (50G Ethernet / Lane)
Compliant with IEEE 802.3by (25G Ethernet / Lane)
Data Rate : 100 Gbit/s (56G PAM-4* 2 Chaneel)
Low Power Consumption < 0.5W (Passive)
Support Wire AWG : 30 / 28 / 26
Support Length (Passive DAC) : 0.5- 3.0Meter
EEPROM Signature Can Be Customized
Target Market
100G Ethernet Per Cable
Storage, Switch, & RAID Systems
High-Performance Computing (HPC)
Network Interface Cards (NIC's)
Telecommunication Equipment
Data Center and Enterprise Storage Systems

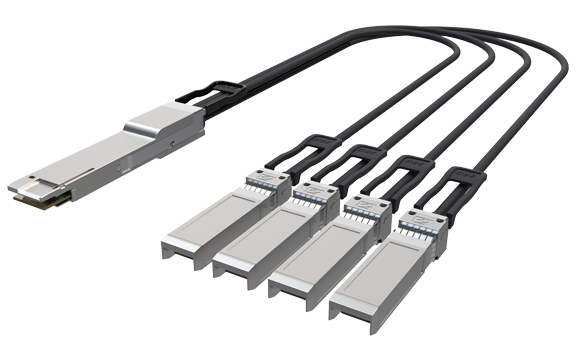

QSFP-DD 400 Gbps to 4* NGSFP 100 Gbps DAC
Zhaolong NGSFP(DSFP) (Next Generation Small form factor ) Copper-assembly products is designed to meet the needs of data centers, networks, and high-performance computing applications and have a high-density cable interconnection system with a transmission rate of 56G PAM-4 per channel total 100G per cable .
兆龙NGSFP/DSFP铜缆组件主要应用于数据中心，网络，超算，单通道传输速率可以达到56G PAM-4,总传输速率可以达到100Gbps
